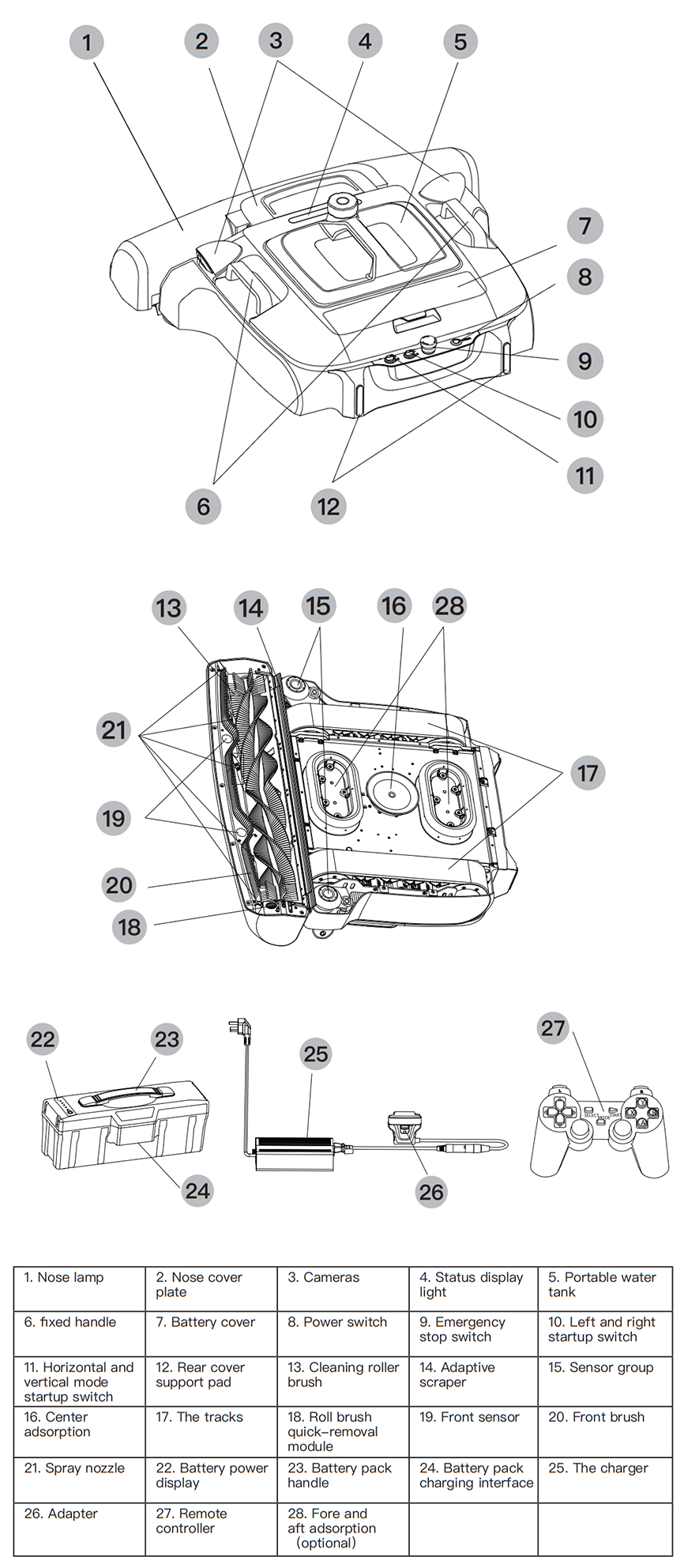

This product consists of 4 parts

Body, battery pack, portable water tank, cleaning head The modular design of the product makes it easy to carry, transport and maintain. Portable design makes the product Recycle between multiple power stations

The naked weight of the machine is 28kg

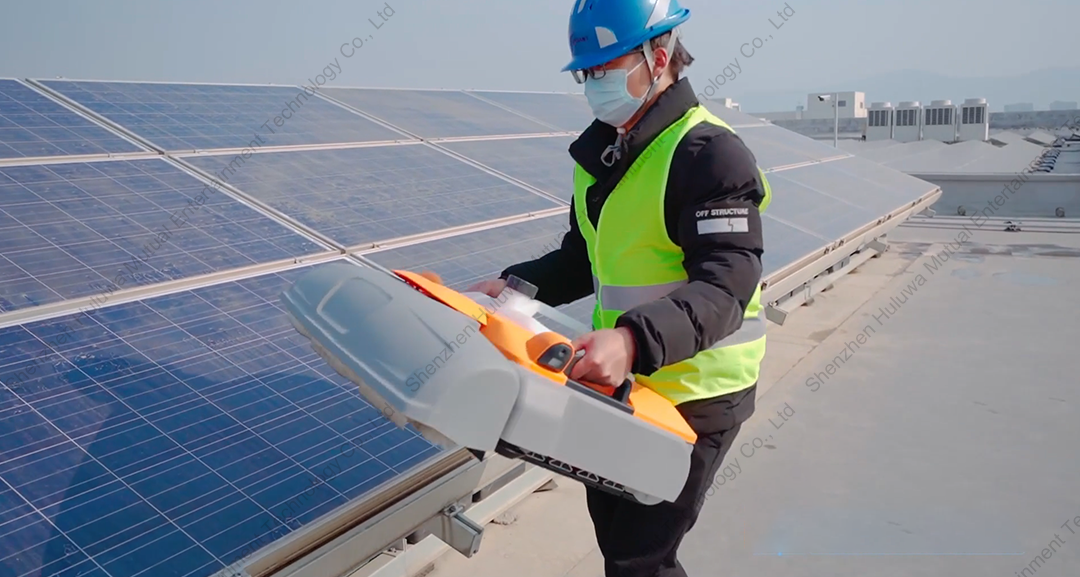

This product is easy to operate, one person operation, light weight, small size, lightweight and convenient, strong operability, easy to handle and long-distance transportation, the weight of the machine is 28kg, can be carried to the photovoltaic panel by one person

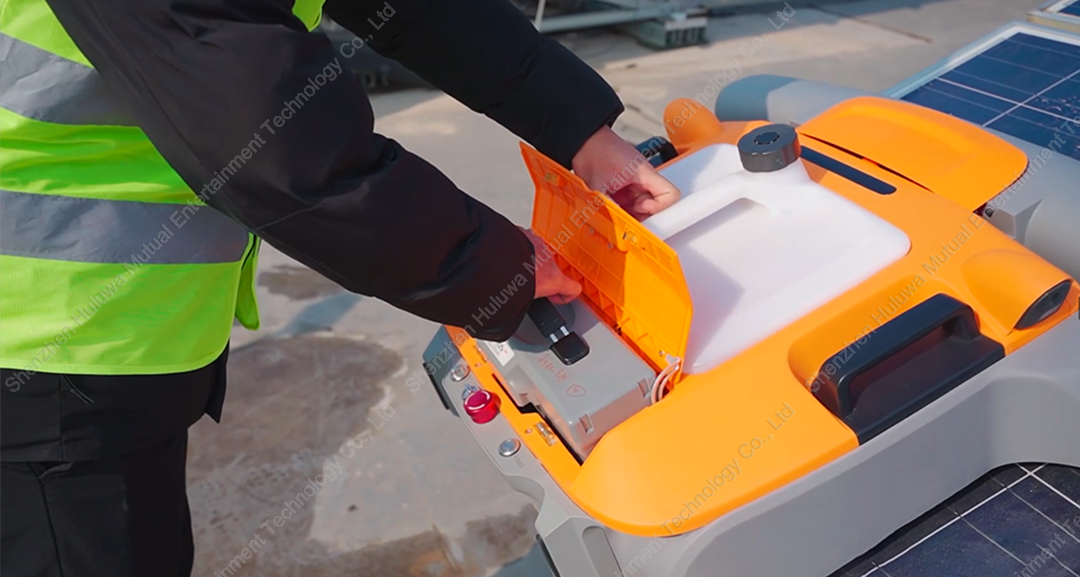

Quick plug battery

Quick plug battery, can be removed from the device to replace the battery and remove the battery charging, voltage ≤25.2VDC, charging time 5 hours Photovoltaic panel Angle ≦20 degrees, battery life of 6 hours; Photovoltaic panel Angle >20 degrees, long battery life of 3 hours

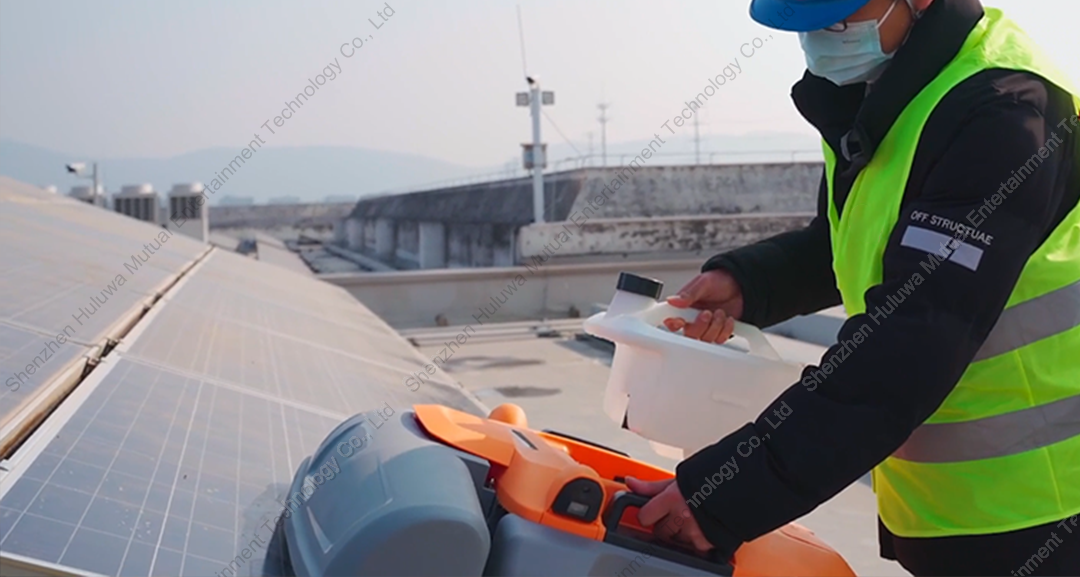

Quick plug water tank

The water tank is quickly inserted and removed,

the nozzle atomized water spray, the water tank capacity is 8L, the water pump speed regulation is 60%, the water tank durability is about 75 minutes, the water pump speed regulation is 80%, the durability is about 45 minutes,

which can be adjusted according to the pollution degree

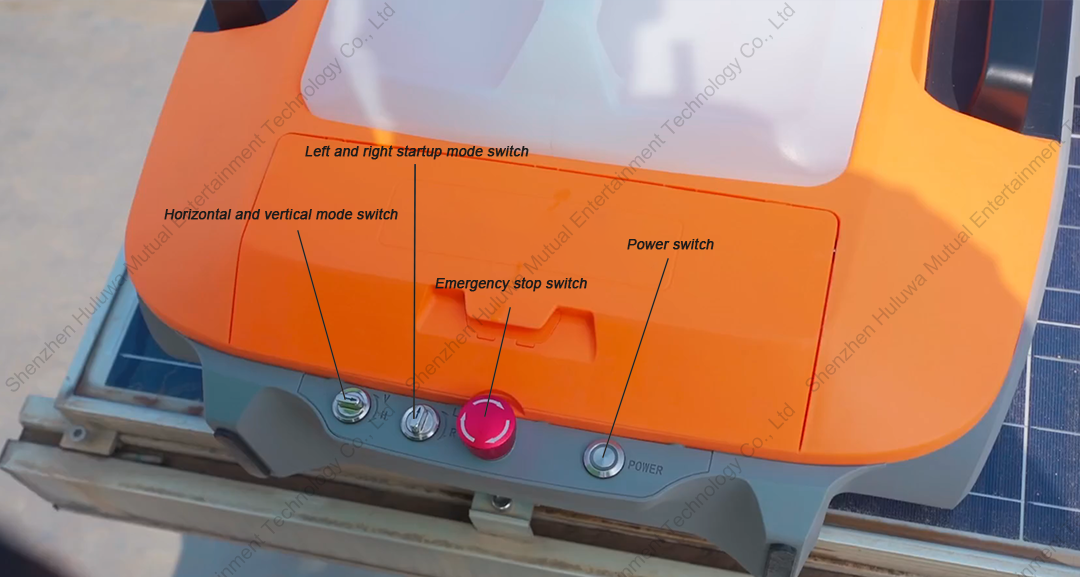

Device operation button

According to the placement position, select the horizontal and vertical mode of the component, the left and right starting mode, the one-button starting, the device automatically walks, and the motion trajectory is planned

by itself to ensure the full coverage of array cleaning

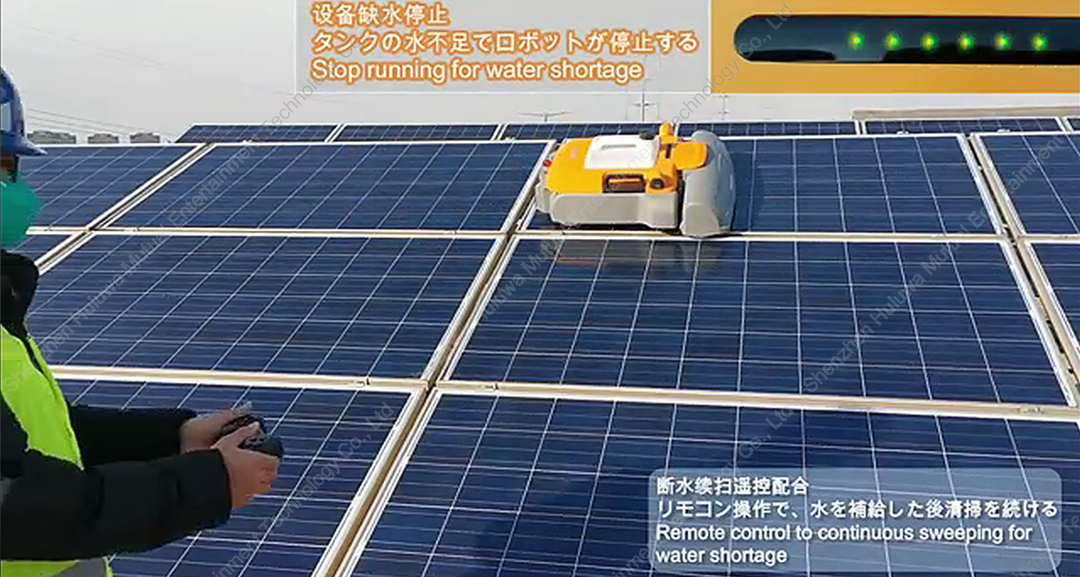

Water shortage alarm system

In the case of water shortage, the device automatically alarms to stop, which can be observed in the APP.

The remote control can also be operated to the water change point, replace the water tank, and then remote control to the place that has just stopped, disconnect the remote control, and the device continues to clean

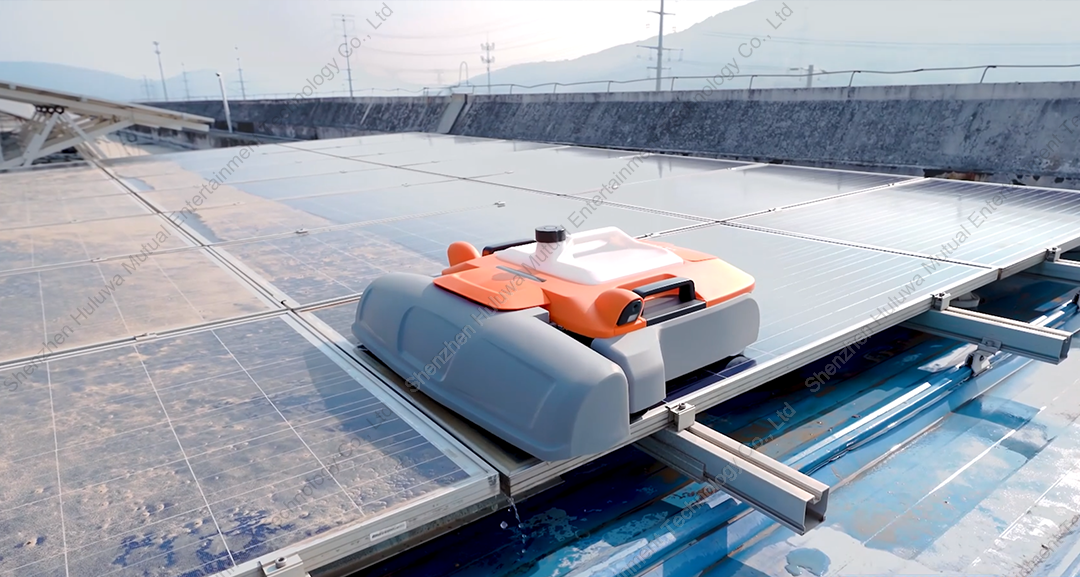

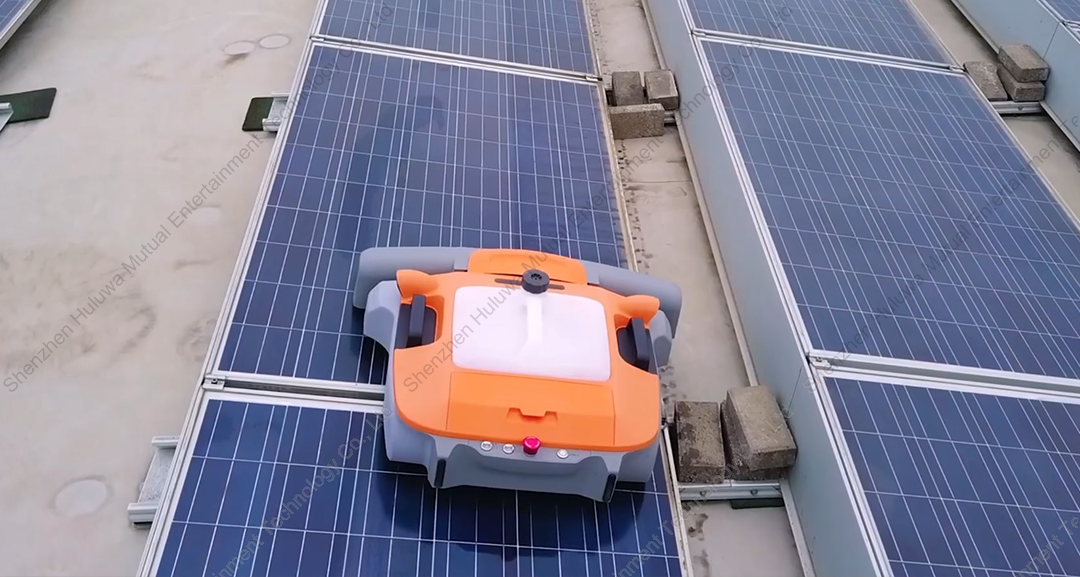

Obstacle crossing ability

Conventional aluminum frame module ≤550w photovoltaic panel, array spacing ≤50mm, component height difference ≤15mm photovoltaic panel, the machine has sensor and visual dual effect control, edge detection protection function and a variety of necessary interlock protection functions, with fault self-diagnosis and other functions.

High cleaning efficiency

After cleaning, the sewage has a scraper to scrape the sewage on the surface of the component, and the edge can also be cleaned to ensure the cleaning effect of the surface of the component. The brush is a soft nylon material, the full water volume of the whole machine is 36KG, and the photovoltaic module will not produce hidden cracks

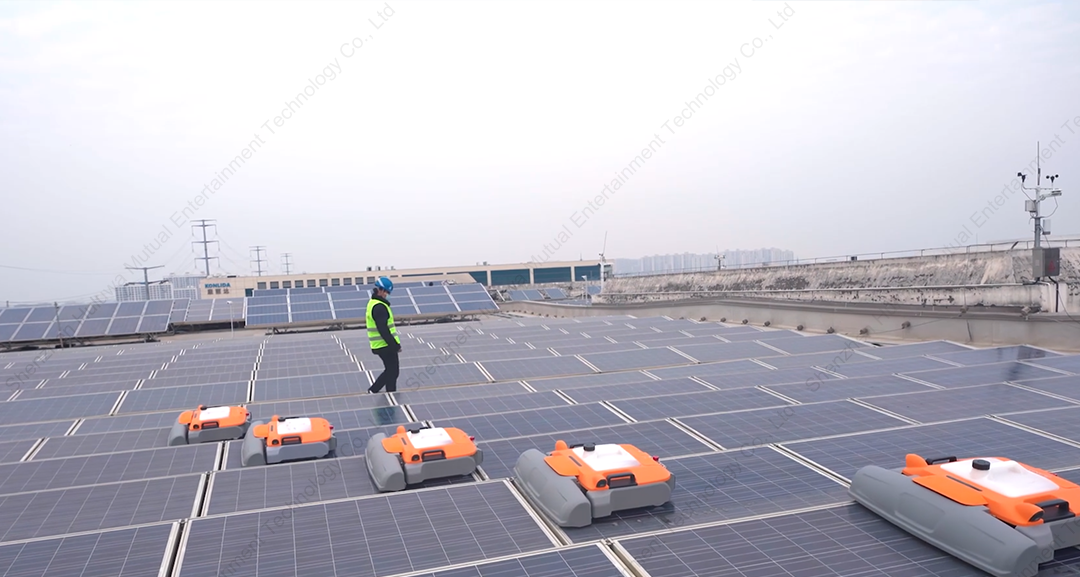

One person manages multiple devices for efficient cleaning

Automatic visual control, software OTA upgrade, APP interaction (Android, Apple), APP self-built map planning and operation Real-time log, fault alarm, water breakpoint continuous scanning, remote control assistance, night operation The rolling brush length is 666mm, the cleaning efficiency of the cleaning robot is 300m²/h, and the cleaning efficiency of the single machine is 350KW per day. By optimizing the lighting system and vision system, the robot can work at night.

Through intelligent floating cleaning technology and rail track optimization design, the dust on the surface of the component panel is cleaned in layers to ensure full coverage of panel cleaning, cleaning rate of more than 98%, one person can manage multiple joint operations, greatly improving cleaning efficiency.
